China Excavators - C65 with CE
Chinese Construction Machinery Exporters



C65 China Excavators with CE - Specifications				Basic Dimensions
Operate weight	6200 kg	13669 lbs		Upper structure witdth	1785 mm	70"
Bucket capacity	0.25 m³			Under carriage width	1880 mm	74"
Engine model          Cummins B3.3-C60 / YANMAR 4TNV94L				Overall height	2650 mm	104"
Engine power	45 kW	38 kW		Overall length	6070 mm	239"
Swing speed	10 rpm			Rear swing radius	1700 mm	67"
Ground pressure	34 Kpa			Ground clearance	400 mm	16"
Travel speed	4.0/2.5 km/h			Clearance under counter weight	780 mm	31"
Tracking force	49.3 kn
Gradeability	35°			Working range
				Digging radius	6245 mm	246"
Additional Specifications				Digging depth	3785 mm	149"

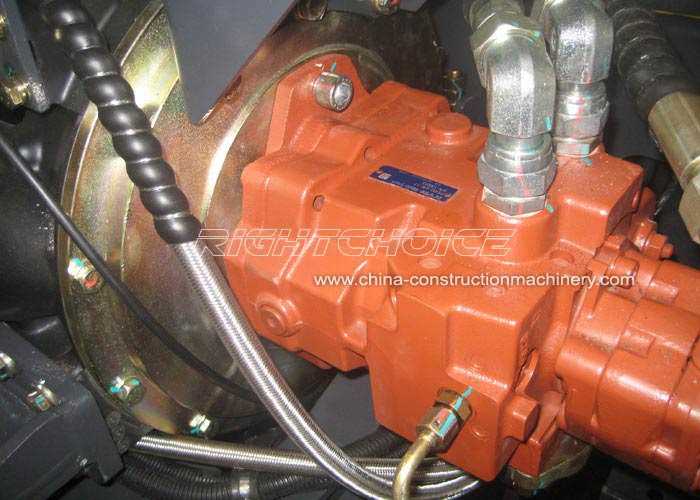

Japanese KYB main pump				Digging height	5785 mm	228"
Japanese KYB valve, tracking motor				Dumping height	4095 mm	161"
Korea Doosan Travel Motor				Dozer cutting depth	595 mm	23"
Italian valve, pilot control lever				Dozer lifting height	300 mm	12"m
Delivery time: 20 - 30 days				FOB: Qingdao, CHINA
Warranty: 12 months				PRICE: Get an exact quotation for the C65

C65 Excavator with CE - Features & Specifications

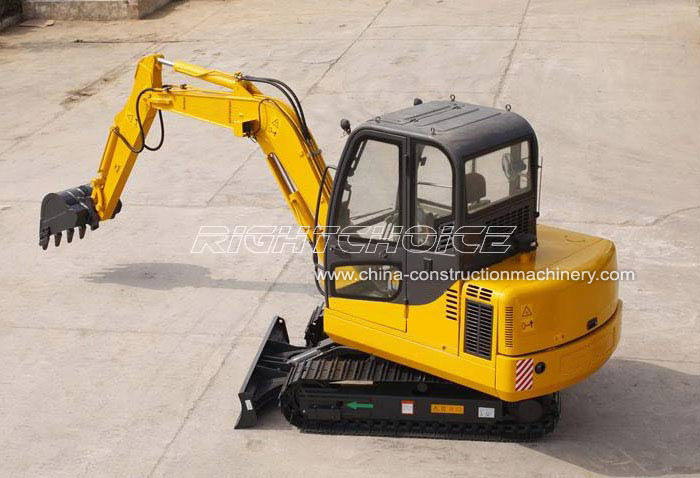

China Excavators - With a 6.2 ton operating weight and a 6 m total length, the C65 excavator is one of our most popular models. Its key imported components include, Japanese made main pumps, tracking motors and its Korean Doosan travel motors. These maximize the machine's output efficiency and reliability.

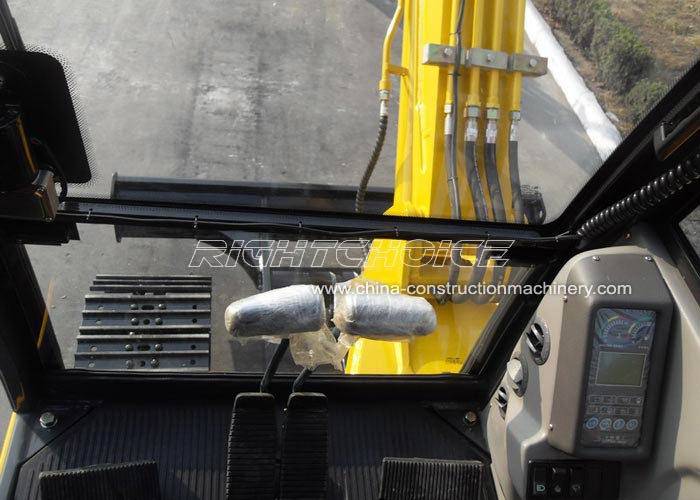

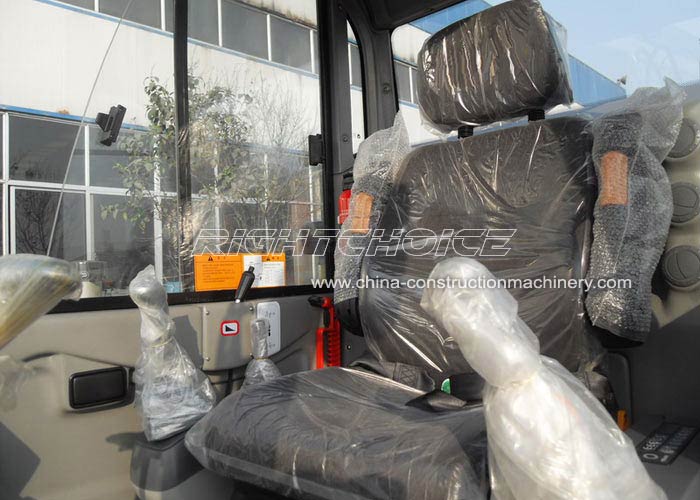

The cabin has been optimally designed to create the most comfortable working environment possible for the operator. Among the many features that help minimizes fatigue caused by long driving hours we would like to highlight its height and angle adjustable suspension seat, air conditioning interior, high sensitivity joystick, as well as its spacious and low noise cabin interior.

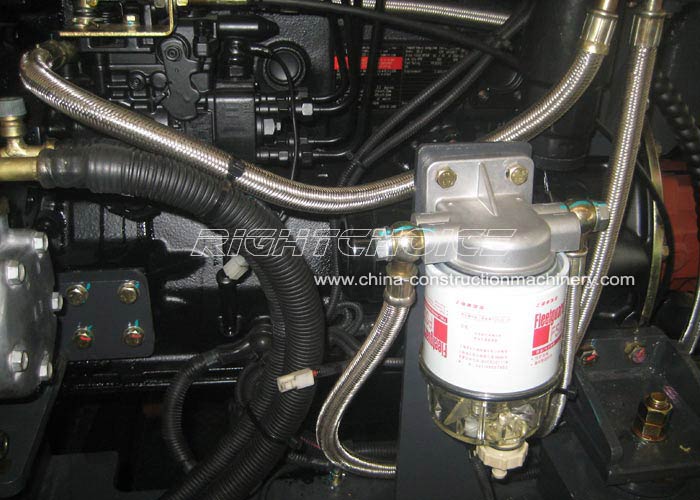

1. Engine - Cummins B3.3-C60 / Yanmar 4TNV94L

The Cummins B3.3-C60 and Yanmar 4TNV94L turbocharged engines used in the C45 are of extremely high quality and high torque. These allow the C65 excavator to achieve a superior digging force in all environments. The fact that they are both high reliability and low fuel consumption, have made them the best choices for our C65 models.

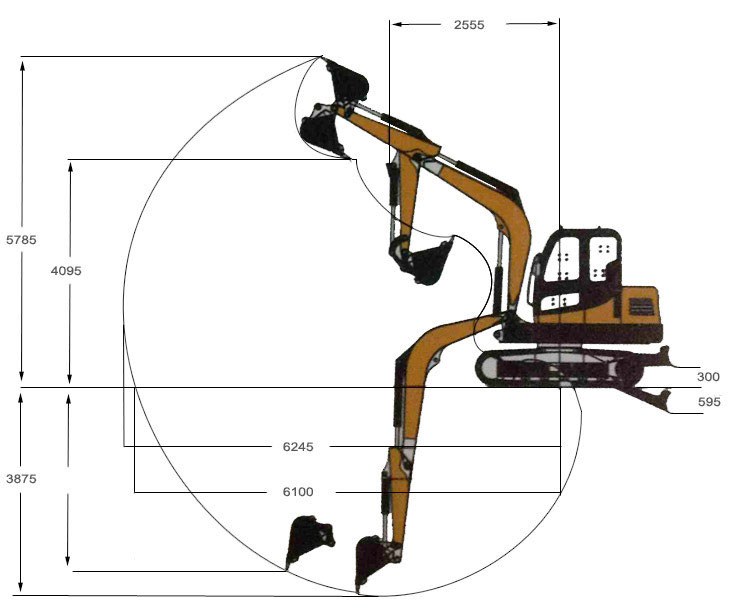

2. Dimensions & Loader Capacity

3. Photos

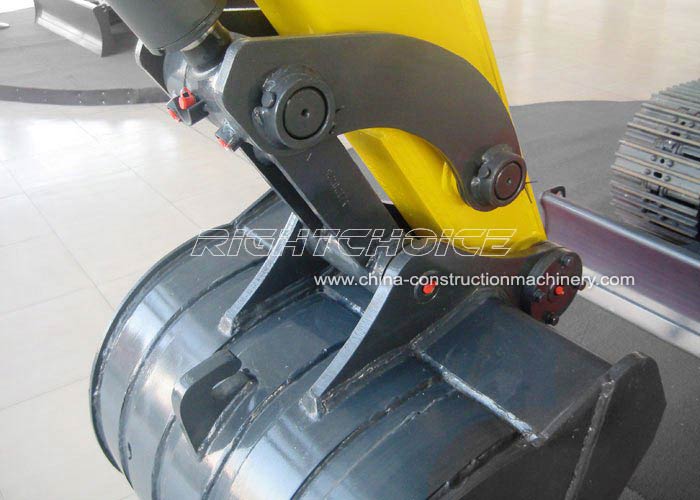

4. Attachment excavators

- 310 mm bucket with 2 teeth
- 400 mm bucket with 3 teeth
- 450 mm tilting bucket with 3 teeth
- 700 mm bucket with 5 teeth - standard bucket
- 800 mm tilting bucket without teeth
- Hammer (top type)

5. Loading

Container body size 40HQ: 12000 * 2130 * 2720 (LxWxH) load 2 units in one 40HQ container. FOB: Qingdao, Shandong Province CHINA. For more information or for a quotation on the C65 or on any of our heavy equipment machinery please feel free to send us a message. All of our China excavators are of extremely high quality as all key components are imported from abroad.
