China Front End Loader
RC16 with CE



RC16 China Front End Loader - Engine				Basic Dimensions
Model*	Xinchai 498 (Euro III)			Length	5700 mm	224"
Power	37 kW	50 hp		Width	1850 mm	73"
Speed	2400 rpm			Height	2730 mm	108"
Torque	YJ240 model			Ground clearance	260 mm	10"
Fuel consumption	<225 g kw.h			Dumping height	2900 mm	114"
*Optional: Perkins and Cummins engine				Dumping reach	1050 mm	41"
				Wheel base	2200 mm	87"
Performance
Operating weight	4020 kg	8863 lbs		Additional Specifications
Loading weight	1600 kg	3527 lbs		Turning radius	4000 mm	158"
Driving speed	20 km/h	12.4 mph		Breakout force	51 Kn
Lifting time of bucket - full load	3.3 sec			Tire (larger tire on demand)	20.5/70-16
Falling time of bucket - idle load	2.2 sec			Turning angle	35°±1
Delivery time: 20 - 30 days	FOB Qingdao, CHINA			Minimum Order: 1 unit
Guarantee: 12 months	+ Pictures of the RC16			PRICE: Get an exact quotation

RC16 Wheel Loader with CE - Features & Specifications

China Front End Loader - The RC16 wheel loader with CE is reliable and efficient compact wheel loader. Not only is it a durable and highly productive machine, but one which is high energy saving. Its cabin has specifically been designed to maximize both visibility and comfort. From a single joystick the operator has total control over all of the functions of this 4020 kg wheel loader with a lifting weight capacity of 1600 kg.

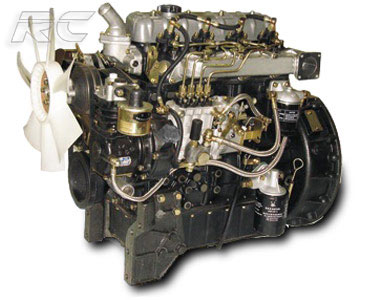

1. Engine - Xinchai 498 (Cummins and Perkins optional)

Powered by a 37 kW (50 hp) fuel efficient Xinchai 498 engine (Euro III), the RC16 wheel loader is able to perform optimally under all conditions. This 4 cylinder (98 mm) diesel engine has a rated speed of 2400 r/min and a 193 N.m acrotorque. The Xinchai 498 (Euro III) engine has a fuel consumption rate of under 225 g/kW/h and an oil consumption rate of under 1.0 g/kW/h. Under customers' request we also manufacture the RC16 with both Cummins and Perkins engines.

2. Dimensions & Loader Capacity

One of the main features we are proud of the RC16 is its structural design. This powerful vehicle has a full length (standard bucket on ground) of 5700 mm, a 1850 mm width and a 2200 mm wheel base. This optimally designed structure allows the operator to work with heavy loads (1600 kg /1.6 t) in a safe environment.

3. Controls & Drive System

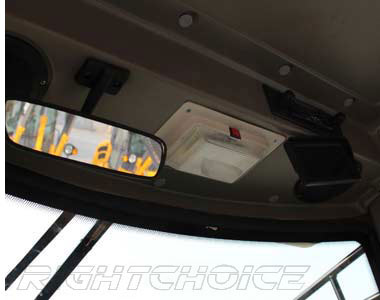

Maximum productivity and comfort being top priorities, the RC16 wheel loader has been developed with an integrated luxury cabin. Its E-mark seat, adjustable steering, back camera and electric gear shift function on a single joystick are only some of the features which make the RC16's interior the ideal working space for any experienced and new on the job operator.

The RC16 drive system is formed by a YJ1 240 torque converter, a fixed-spindle power shift gear box (2 advance and 2 reverse positions), a CBN-E316 drive pump (16ml/r), a main arc cone gear first reduction retarder and the front and rear axis (820 mounted distance).

Click on the 'RC16 Technical Performance Parameters' for more details

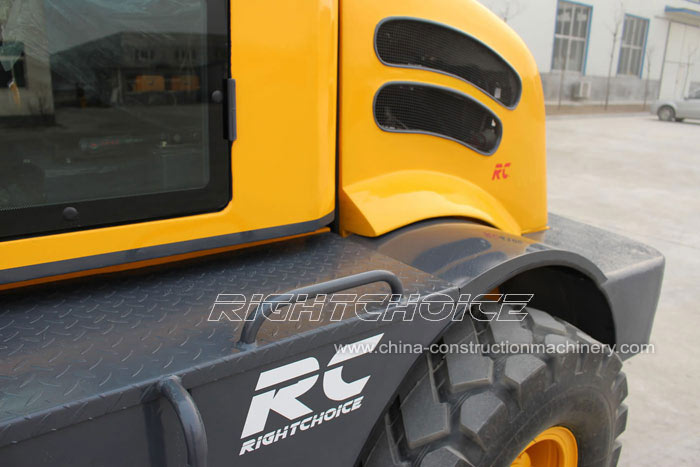

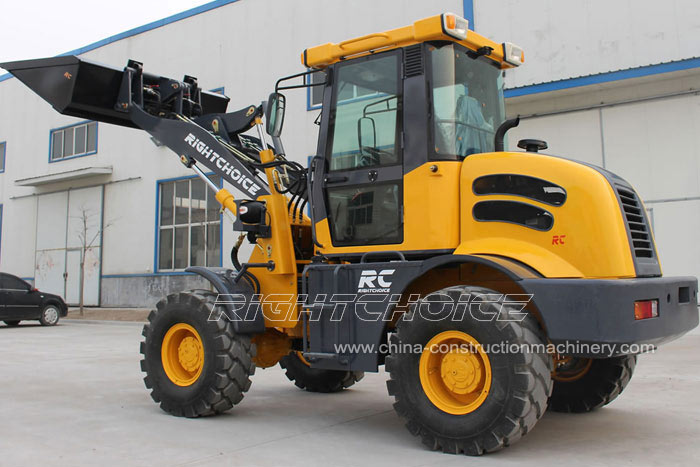

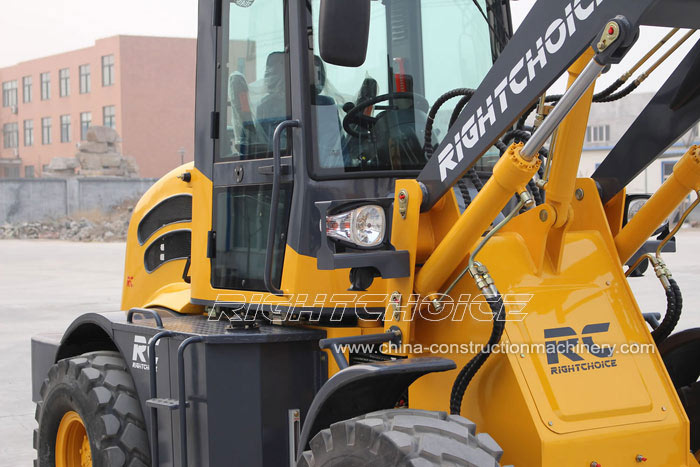

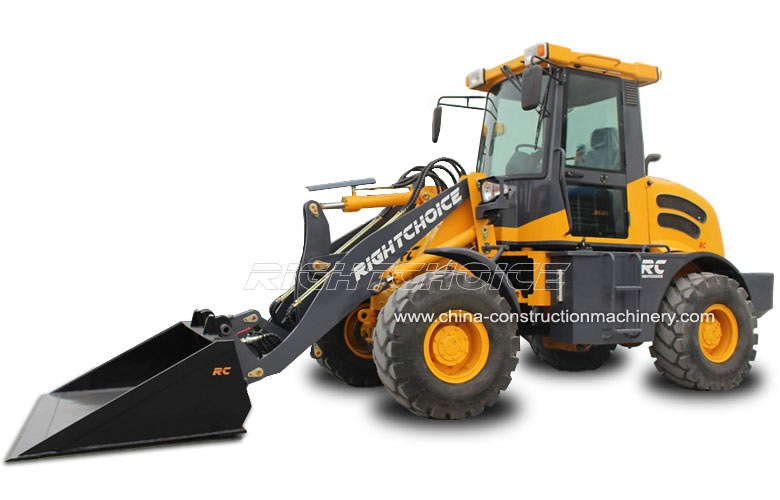

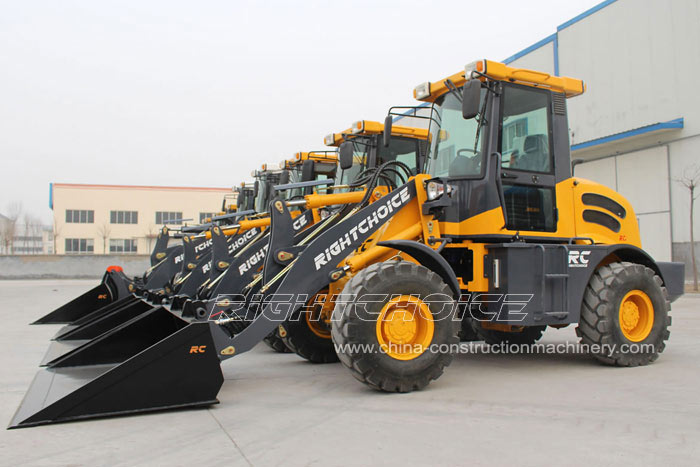

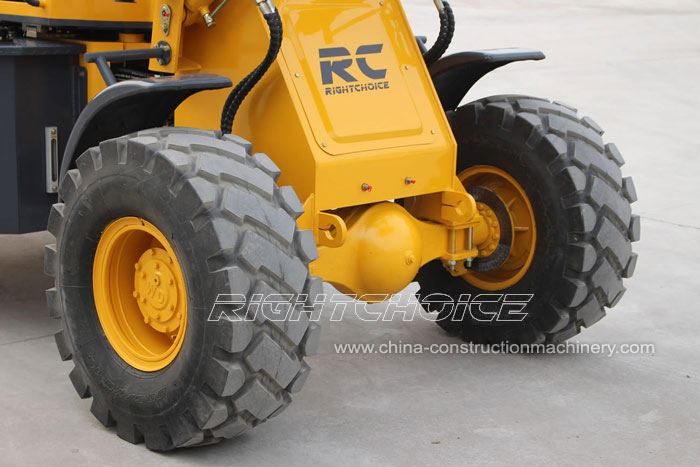

4. Photos

Click for more pictures of RC16 compact wheel loader
