RC12 with CE



RC12 Wheel Loader Suppliers - Engine				Basic Dimensions
Model*	Changchai 4L68			Length	5100 mm	201"
Power	37 kW	50 hp		Width	1700 mm	71"
Speed	2400 r/min			Height	2530 mm	100"
Torque	YJ240 model			Ground clearance	260 mm	10"
Fuel consumption	<230 g kw.h			Dumping height	2650 mm	104"
*Optional: Xinchai 490, Perkins and Cummins engine				Dumping reach	1050 mm	41"
				Wheel base	2100 mm	83"
Performance
Operating Weight	3680 kg	8113 lbs		Additional Specifications
Loading Weight	1200 kg	2646 lbs		Turning radius	3600 mm	142"
Driving Speed	16 km/h	10 mph		Breakout force	45 Kn
Lifting time of bucket - full load	3.3 sec			Tire (larger tire on demand)	11.00-16
Falling time of bucket - idle load	2.2 sec			Turning angle	35°±1
Delivery time: 20 - 30 days	FOB Qingdao, CHINA			Minimum Order: 1 Unit
Guarantee: 12 months	+ Pictures of the RC12			PRICE: Get an exact quotation

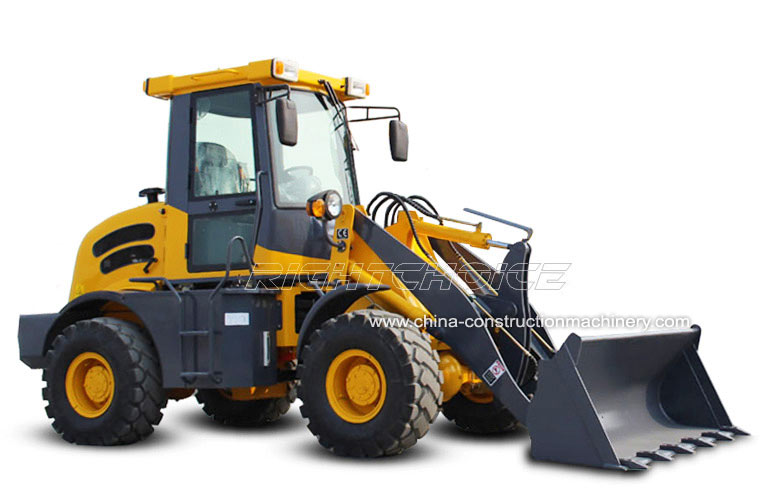

RC12 Wheel Loader with CE - Features & Specifications

China Wheel Loader Suppliers - The RC12 wheel loader is a four-wheel drive with an oscillating back axle which makes it the ideal vehicle for both on and off-road works. The RC12 is used in a variety of fields from coal and gravel yards, to road constructions and small to medium-size civil construction works.

With a 3680 kg operating weight, a 1200 kg (1.2 ton) lifting capacity and a 0.7 m³ bucket size, this machine is able to perform optimally in confined and narrow sites due to its reduced minimum turning radius. The array of attachments available for the RC12 means that its operator can perform an endless number of tasks.

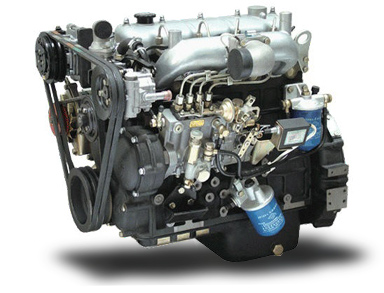

1. RC12 Engine - Changchai 4L68 (Perkins and Cummins Optional)

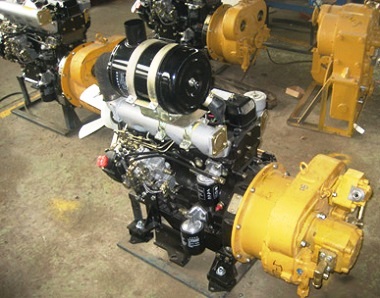

Changchai multi-cylinder engines are one of the most reliable and efficient engines in the Chinese market. It's compact size and dynamic structure enables optimal performance. The Changchai 4L68 is a 4 cylinder diesel engine with a 50 hp (37 kW) at a speed of 2400 r/min. Its in-line, water cooled, 4-stroke engine has a fuel consumption ratio of under 230 g/kw.h. It has a max. torque of 160-170 N.m at 2100-2600 r/min and is capable of enduring the toughest conditions. We also build the RC12 wheel loader with Xinchai 490/498, Perkins and Cummins engines according to our customers' requirements.

2. Dimensions & Loader Capacity

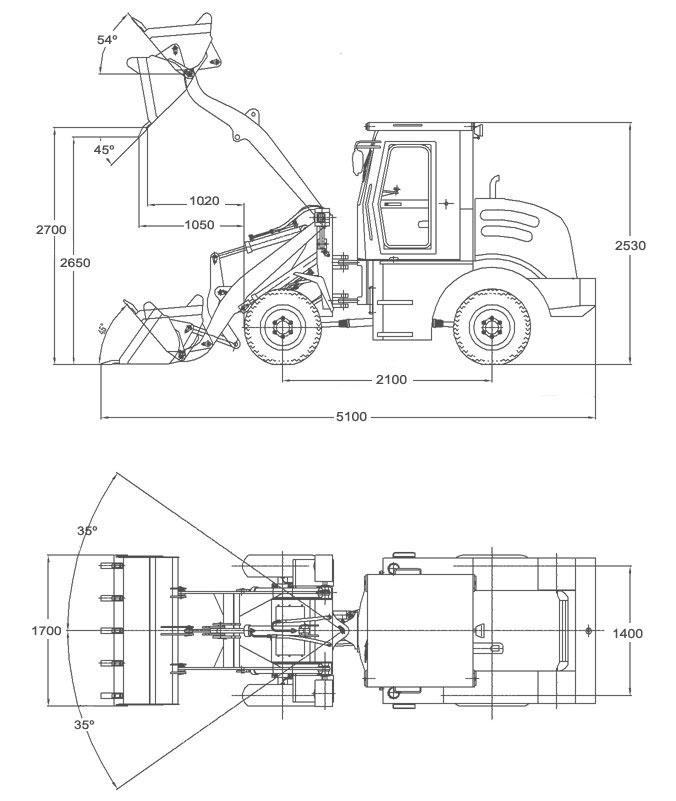

The RC12 model has a 5100 mm total length with its bucket on the ground, a 1700 mm width, a 2100 mm wheel base and a 260 mm minimum ground clearance. This durable compact wheel loader travels at a maximum speed of 16 km/h. As one of the most innovative wheel loader suppliers and manufacturers in China, we are proud to say that RC12 is one of the most stable and efficient 1.2 ton wheel loaders in the market today.

3. Controls & Drive System

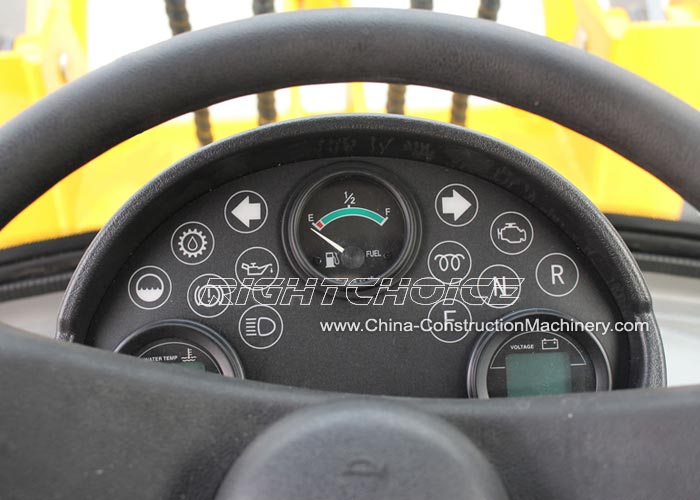

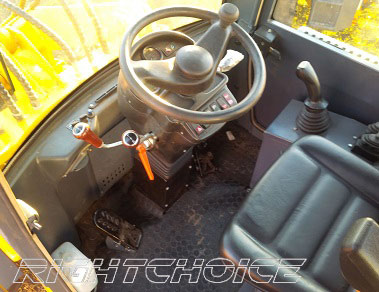

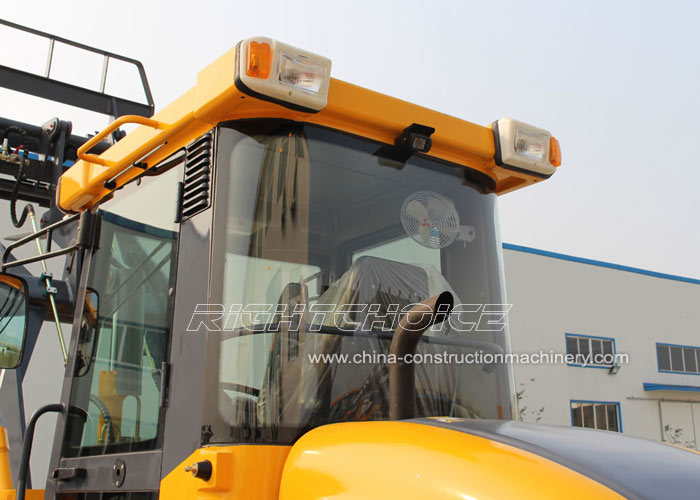

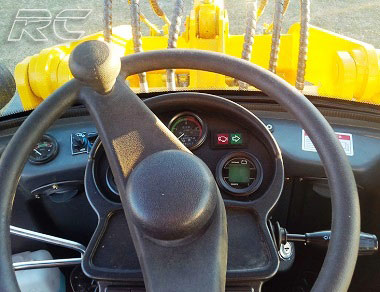

The RC12's luxury cabin provides the operator a comfortable environment from where to carry out all operations. Its E-mark shock proof seat, adjustable steering wheel and mechanical joystick gives the operator total control over the machine with minimum effort.

The drive system consists of a YJ240, single-phase, single-stage radial-inward turbine triplex converter with a rated input speed of 2300 r/min. It has a fixed-spindle power shift gear box with two advanced and two reverse positions. Its transmission power is 35-40 kW at 2500 r/min. The drive pump used in this vehicle is a CBN-E316 gear pump at 16ml/r.

4. Photos

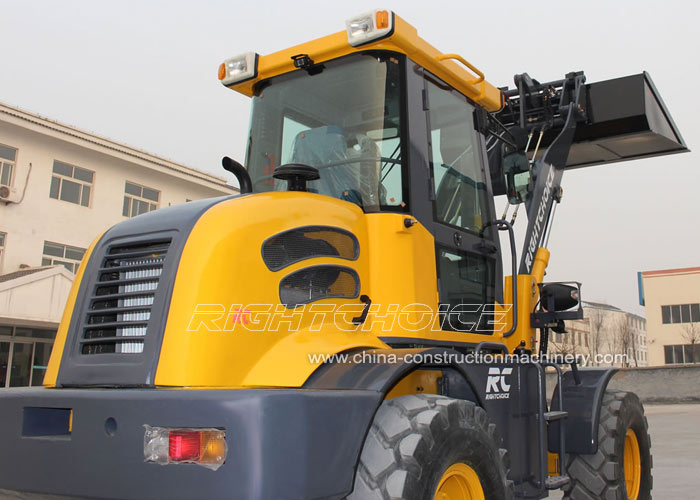

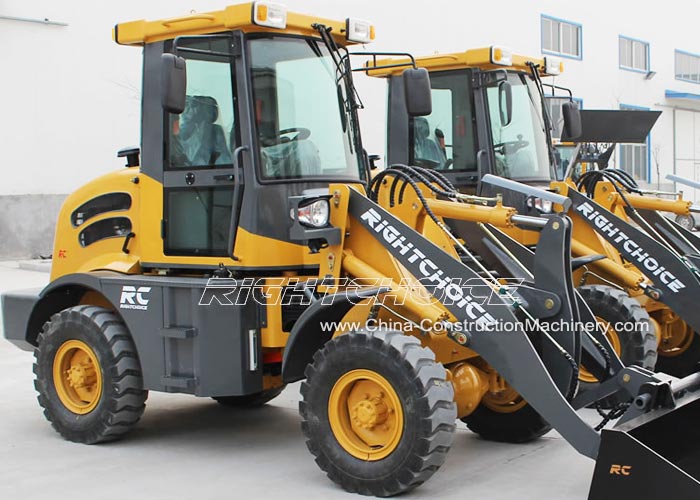

More pictures of RC12 compact wheel loader

5. RC12 Attachments

We manufacture an array of attachments for the RC12 model. This includes pallet forks, adjustable pallet forks, 2 moving side snow blades, V type snow blades, snow buckets, 4-in-1 buckets, flat buckets, selecting buckets, mixing buckets, wood grapples, barrel grapples, European type barrel grapples, grass forks, European type grass forks, sweepers and sand spray equipment.

As one of the leading Chinese wheel loader suppliers and manufacturers, we offer extremely competitive rates on all our construction equipment, high-quality and an excellent post-sales service. For a quotation on any of our heavy construction machinery please feel free to send us a message.
