Wheel Loaders Manufacturers
RC20 with CE
 |
|||||
 |
 |
 |
 |
 |
 |
| RC20 Wheel Loaders Manufacturers - Engine | Basic Dimensions | |||||
| Model* | Dongfanghong
YTR4108 |
Length | 5910 mm | 233" | ||
| Power | 60 kW | 80 hp | Width | 2010 mm | 79" | |
| Speed | 2400 rpm | Height | 2850 mm | 112" | ||
| Torque | YJ280 model | Ground clearance | 310 mm | 12" | ||
| Fuel consumption | <251 g kw.h | Dumping height | 2950 mm | 116" | ||
| *Optional: Perkins and Cummins engine | Bucket volume (standard) | 1.1 m³ | ||||
| Wheel base | 2200 mm | 87" | ||||
| Performance | ||||||
| Operating weight | 7480 kg | 16491 lbs | Additional Specifications | |||
| Loading weight | 2000 kg | 4409 lbs | Turning radius | 4639 mm | 183" | |
| Driving speed | 24 km/h | 15 mph | Breakout force | 70 Kn | ||
| Lifting time of bucket - full load | 4.8 sec | Tire (larger tire on demand) | 16/70-20 | |||
| Falling time of bucket - idle load | 3.3 sec | Turning angle | 35°±1 | |||
| Delivery time: 20 - 30 days |
FOB Qingdao,
CHINA
|
Minimum
Order: 1 unit
|
||||
| Guarantee: 12 months |
PRICE:
Get
an exact quotation
|
|||||

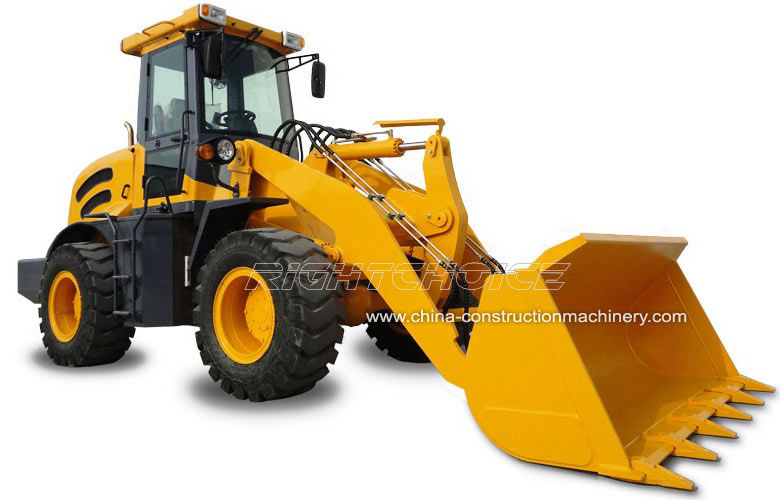

Wheel Loaders Manufacturers RC20 with CE - Features & Specifications
Extremely durable and reliable the RC20 wheel loader make the
most demanding of jobs look easy. Whether you are an experienced operator
or have just started in the business you will be surprised of how remarkably
easy it is to operate.
With a 6170 kg operating weight, a 1.1 m³ bucket volume, a 2000 kg loading weight capacity and a smooth shifting transmission system, this machine guarantees its operator maximum productivity at all times. And it is with productivity and comfort in mind that its luxury cabin has been designed. From here the driver has unparallel control over all the wheel loader's functions.

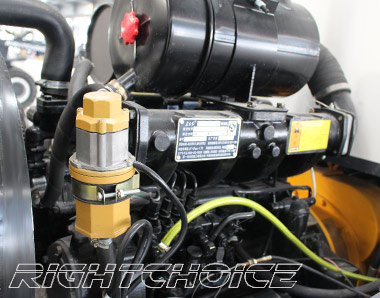

1. Engine- Dongfanghong YTR4108 (Cummins & Perkins engine optional)
The Dongfanghong YTR4108 engine has been designed for
maximum performance and minimum maintenance. This four cylinder (108
mm bore), in-line diesel engine guarantees optimal output.
The Dongfanghong YTR4108 has a 60 kW rated power and 206
Nm torque force, powering the RC20's wheel loader's 2 ton lifting
capacity. Its low fuel and oil consumption makes this engine both efficient
and cost-effective. We also manufacture the RC20 end front loader
with Cummins and Perkins engines according to customers' specifications.
2. Dimensions & Loader Capacity
Its structural precision and design has led to the RC20 end front
loader's excellent performance in the field. Its 5910 mm full length
(bucket on ground), 2010 mm width and 2200 mm wheel base makes this
loader one of the most stable and durable 2 ton wheel loaders in the
market.
3. Controls & Drive System
The RC20's luxury cabin is nicely equipped with
an E-mark seat, an adjustable steering wheel, a back rear camera and
a mechanical joystick. These allow the operator control the vehicle
effortlessly in a both comfortable and safe manner.
The RC20's hydraulic torque is a YJ265 single-stage,
single phase, three element converter with a >3.02 coveting coefficient
and a pressure oil-cooling cycle. Its gear box is a fixed-axis power
shift gear box with 2 forward and 2 reverse positions and a 40-55 kW
transmission power. The transmission pump used is a CB-Fc16-1F85-L-X
model and an arc bevel gear main reducer. Another important component
of the RC20 drive system is its wheel-side planetary reducer.
Click on 'RC20 Technical Performance Parameters' for more details

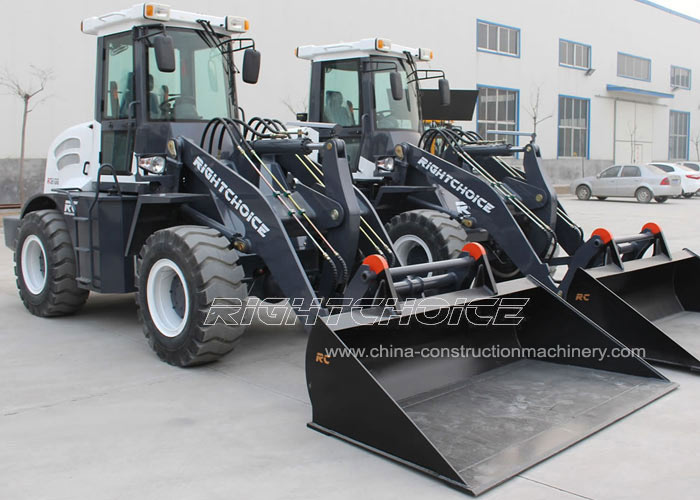

4. Photos
Click for more pictures of RC20 end front loader
RIGHT CHOICE MACHINERY is one of the most reliable wheel loaders
manufacturers in China. If you require additional information on our
RC20 front end loader model, please feel free to contact
us buy using the form below.
