RC50 / ZL50 with CE
Chinese Wheel Loaders Manufacturers



RC50 / ZL50 wheel loader -  Engine				Basic Dimensions
Model*	Weichai Duetz WD615			Length	7929 mm	312"
Power	158 kW (212 hp)			Width	3024 mm	119"
Speed	2200 rpm			Height	3500 mm	138"
Torque	843 Nm			Ground clearance	534 mm	21"
Fuel consumption	<210 g kw.h			Discharge height	3400 mm	134"
*Optional: Cat and Cummins engine				Wheel base	2920 mm	115"
				Wheel tread	2250 mm	89"
Performance
Working weight	16700 kg	36818 lb		Additional Specifications
Loading weight	5000 kg	11023 lb		Turning radius	6201 mm	244"
Bucket volume (standard)	3 m³			Breakout force	155 kn
Driving speed forward	38 km/h	24 mph		Traction force	>150 kn
Driving speed reverse	17 km/h	11 mph		Dischange angle	45°
Delivery time: 20 - 30 days	FOB Qingdao, CHINA			Minimum Order: 1 unit
Guarantee: 12 months	+ Pictures of the RC50			PRICE: Get an exact quotation

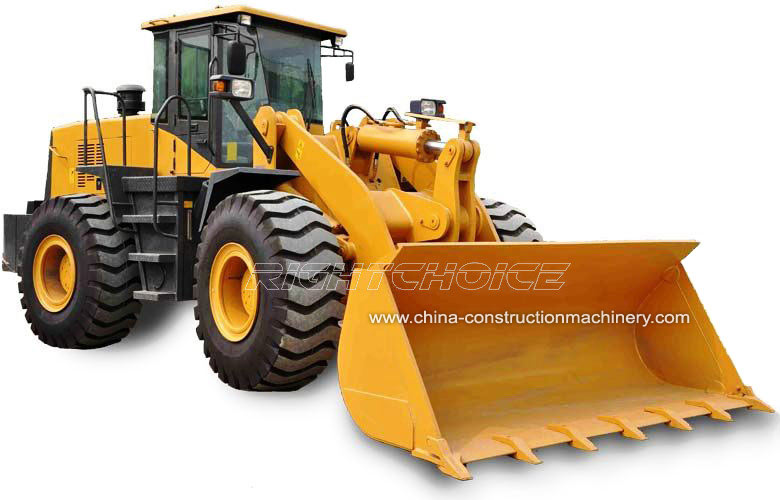

RC50 Wheel Loader with CE - Features & Specifications

The RC50 wheel loader with CE is the largest and most powerful of our loaders. Its unique design based on the ZL50 front end loader and 16700 kg operating weight maximize the vehicle's stability while performing the heaviest of tasks. Its big torque ensures a breakout force of 155 kN and a lifting weight capacity of 5000 kg. This together with its standard bucket of 3 m³ makes the RC50 the ideal machine for performing heavy construction operations, civil works and forestry tasks.

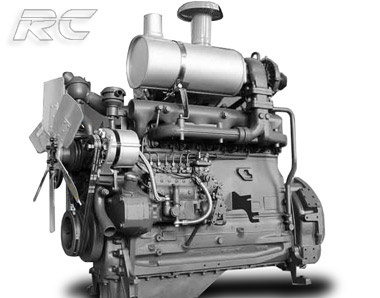

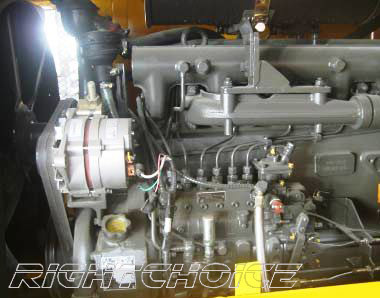

1. Engine - Weichai Deutz WD615 (Cat and Cummins optional)

Weichai Deutz's powerful engine enables the RC50 to carry out the most difficult tasks. Its 158 kW (2200 r/min) engine, powers the RC50's 5000 kg lifting capacity. The Weichai Deutz WD615 67G 3-36 is a turbocharged, 6 cylinder engine with a maximum torque of 843 Nm at 1450 r/min. Its fuel consumption rate is under 210 g/kW h which makes it both an efficient and low consumption engine. We also build the RC50 with Cummins and CAT engines as requested by our customers.

2. Dimensions & Loader Capacity

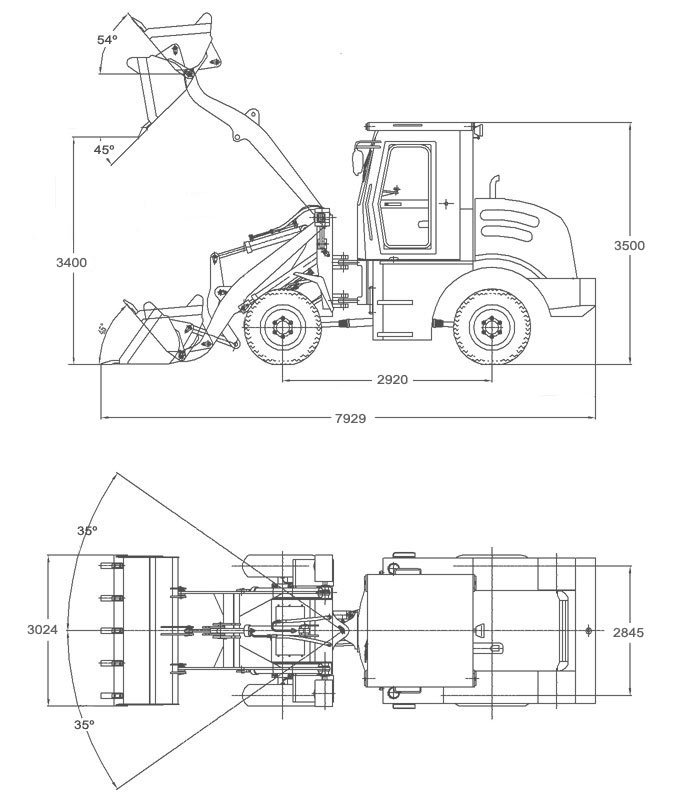

The RC50 wheel loader has a 7929 mm full length, 3024 mm width, 3500 mm height and 2920 mm wheel base. Its robust structure, powerful engine and large standard bucket allow its operator to carry loads of up to 5000 kg (11023 lb) of weight in a completely safe environment.

3. Controls & Drive System



The RC50 has 2 forward and 1 reverse driving positions with driving speeds of 13.5 km/h, 38 km/h and 17 km/h. Click main 'RC50 Technical Performance Parameters'

4. Photos

Click for more pictures of RC50 Wheel Loader

For more information on the RC50 / ZL50 wheel loader please feel free to contact us using the below form. We will send you a reply within minutes. You can also send us an inquiry.
